앰플 / 바이알 비전검사기

앰플 / 바이알 비전검사기

유리 또는 플라스틱 용기 제품의 외관결함 뿐만 아니라 수량, 누락, 위치, 형상, 치수 등을 카메라를 이용하여 제품의 이미지를 촬영하고
이것을 영상분석기술을 이용해 검사하는 장비입니다.
사람의 눈으로 구분 가능한 모든 합/부 판정부터 사람 눈으로 판정하기 어려운 정밀 불량까지 모두 검출할 수 있으며,
사람 대신 기계가 부품 하나 하나를 검사해주기 때문에 공장자동화 시스템을 가능하게 하는 장비입니다.
  • Vision Inspector
  • System Controller
Feature
  • Display Composition

    • Display measurement result on screen
  • Tough Durability

    • Tough component for heat and dust
  • Easy to Use

    • Easy to register and set-up model
    • Easy to identify quality of measurement result
  • DB Expandability

    • Monitoring and remotely controlling production status by local PC
  • Simple to installation and maintenance

  • PC Specification

    • Windows 7, i7-4790, CPU @ 3.6GHz
    • RAM 8.0GB, 64bit Operating System
  • Vision Inspector Size

    • 370W x 864D x 461.5H (mm)

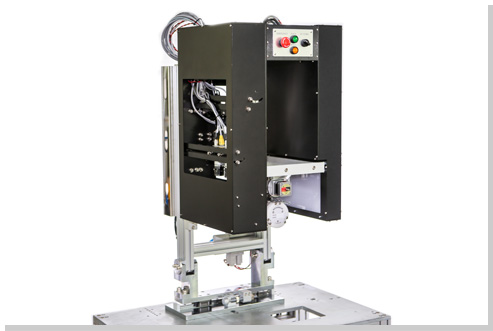

System Composition

  • ① Key/Button
  • ② Servo Motor(Index Motor) Driver
  • ③ Back Light(BLU)
  • ④ Servo Motor(Index Motor)

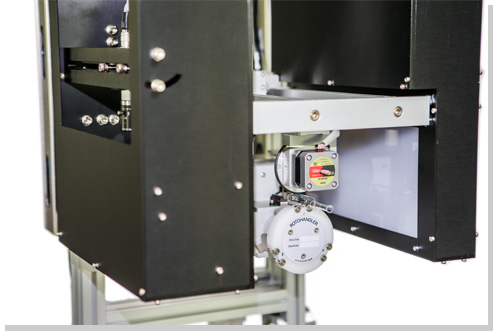

  • ⑤ Stepping Motor(Wheel Motor)
  • ⑥ Roto-Wheel

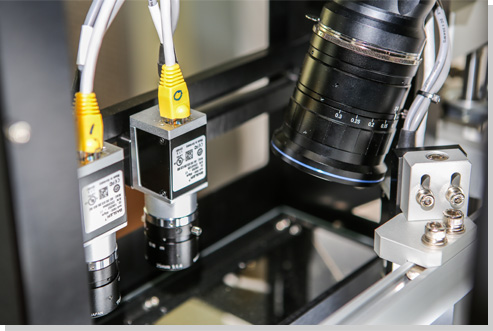

  • ⑦ Bottom Area Camera
  • ⑧ OPC Line Camera
  • ⑨ Area Camera 1, 2
  • ⑩ Stepping Motor Driver
  • ⑪ PLC Controller
  • ⑫ Inspector Tilt Adjustment
  • ⑬ Inspector Left/Right Adjustment

Ampoule Measurements

  • ① Body Diameter
  • ② Construction Diameter
  • ③ Bulb Diameter
  • ④ Funnel Diameter
  • ⑤ Stem on Closing Height
  • ⑥ Ampoule Length
  • ⑦ Bodyheight
  • ⑧ Construction Height
  • ⑨ Run out Construction
  • ⑩ Run out Blub
  • ⑪ Run out Top
  • ⑫ Base Depth
  • ⑬ Base Angle
  • ⑭ Dirt

OPC Measurements

  • ① Diameter OPC Point(axial)
  • ② Diameter OPC Point(circumferential)
  • ③ Ovality OPC Point
  • ④ Satellite area OPC Point
  • ⑤ Hole area OPC Point
  • ⑥ Eccentricity OPC Point Cut
  • ⑦ Length OPC Cut
  • ⑧ Width OPC Cut
  • ⑨ Satellite area OPC Cut
  • ⑩ OPC Cut Height
  • ⑪ OPC Point Height
  • ⑫ Min/Mean/Max Width C/B Ring

Bottom Measurements

  • ① Bottom Dirt

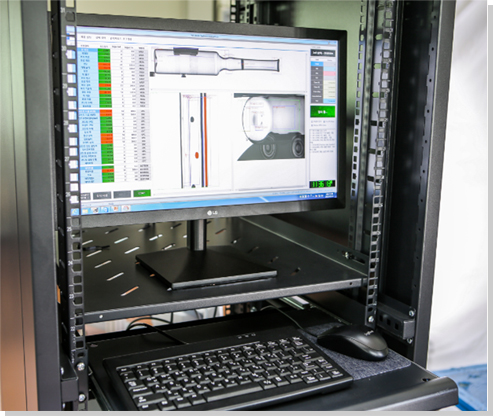

Program Function Key

  • ① Display Menu Selection
  • ② Inspection Result Menu Selection
  • ③ REPORT / RESET Button
  • ④ Temporarily Saving Button
  • ⑤ ONCE Button
  • ⑥ CONTI (CONTINUE) Button
  • ⑦ Current Model
  • ⑧ Measurement Item, Status Display
  • ⑨ Inspection Start Button
  • ⑩ Check Item
  • ⑪ Communication Display
Product View
