New Business II

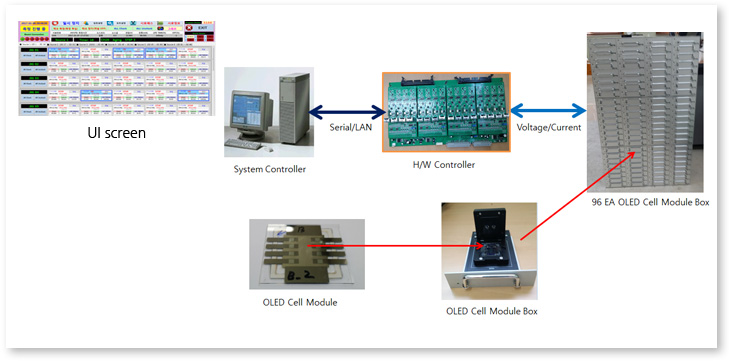

OLED Life Test Equipment
Major Specifications
- Number of OLED Cell Modules : 96 Channels
- Output Vvoltage : + 20Vdc, -20Vdc (Dual Output)
- Output Ccurrent : 0.01 ~ 10mA
- Pulse Ffrequency : 20 ~ 256Hz
- Pulse Rise Ttime : 15uS
- Aging Time : 6,500 hr

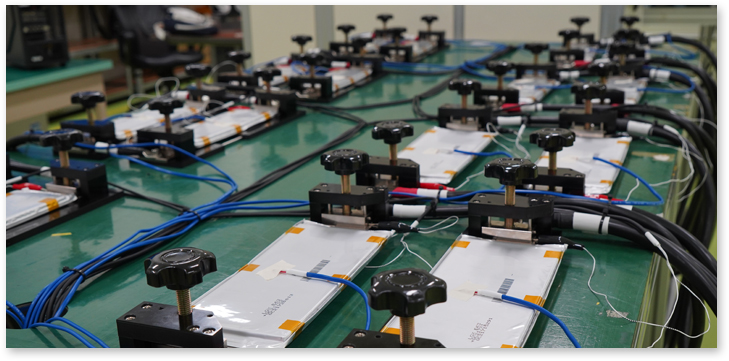

Charger / Discharger
- Simulation of driving patterns for an electric vehicle
- All types of current waveforms fully realized in 1-ms unit
- Measuring internal resistance (DCIR) of a battery cell and EDLC
- Independent high-precision test for precise constant voltage (CV) and constant current (CC) control
- Flexible scheduling of S/W, user-friendly interface and data analysis

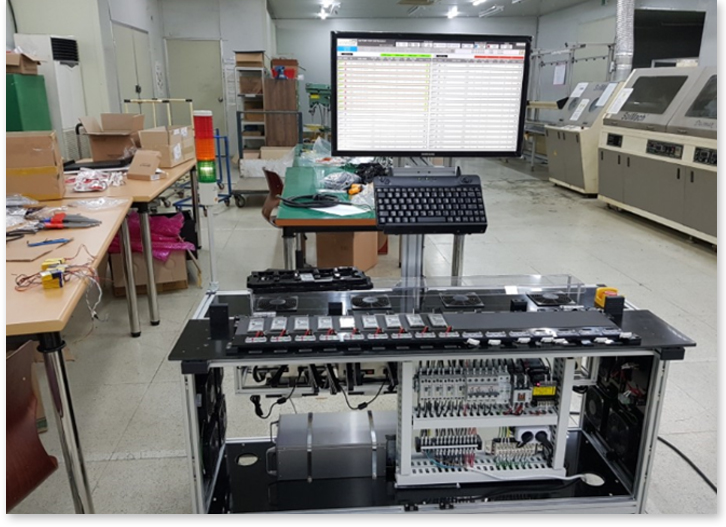

Mobile phone battery charging / discharging aging system
Major Features
128 channels individually controlled
- Simultaneous aging tests of various models
Setting charging conditions
- Setting charging current, charging voltage, and cut off current
Setting discharging conditions
- Setting discharging current and cut off voltage
Continuous tests possible with automatic storage of data in case of power failure or forced termination
Viewing graphs
- Voltage, current, battery temperature, and battery failure
Save log files
Major Specifications
Charging voltage : 1~6V (±3mV)
Charging current : 0~5A (±3mA)
Discharging current : 0~5A (±3mA)
