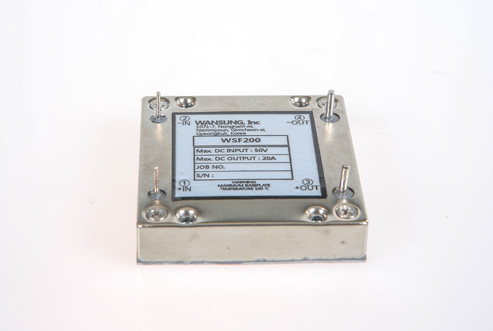

WSF200
FEATURE
- Does not require External Components for Operation
- MIL-STD-461F Compliance
- Less than 1.0Volt drop across the SMF200
- Thermally Non-dissipative Device
- Meets MIL - Standards : MIL-STD-901C, MIL-STD-810E
-
EMI
Filter
-
HOW TO ORDER
WS 200 (28)- WS : series
- 200 : Total Output Power
- (28) : 28Vdc Input
SPECIFICATION
INPUT CHARACTERISTICS
| Min | Typ | Max | Unit | |
|---|---|---|---|---|
| Input Voltage | 50 | Vdc |
ISOLATION CHARA CTERISTICS
| Min | Typ | Max | Unit | |
|---|---|---|---|---|
Isolation
|
|
|
||
| Isolation Resistance | 50 | MΩ |
MECHANICAL CHARA CTERISTICS
| Weight | Size |
|---|---|
| 150 | 61 × 59 × 13 |
| grams | mm |
OUTPUT CHARACTERISTICS
※ 좌/우로 스크롤하시면 내용을 확인하실 수 있습니다.
| Min | Typ | Max | Unit | |
|---|---|---|---|---|
| Rated Output Current | 20 | A |
TEMPERATURE CHARACTERISTICS
| Min | Typ | Max | Unit | |
|---|---|---|---|---|
| Operating(Baseplate) | -55 | +100 | ˚C | |
| Storage(Ambient) | -55 | +125 | ˚C | |
| Over Temperature Shutdown | 105 | ˚C |

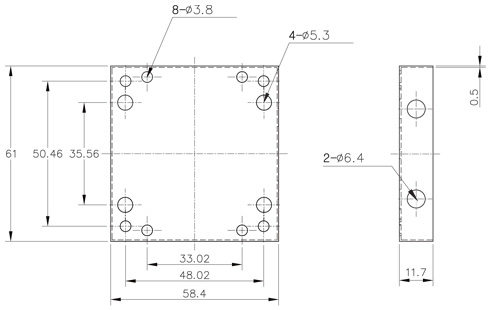

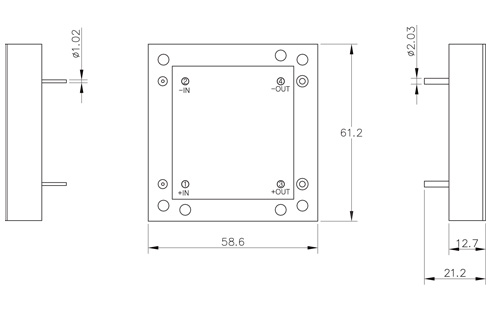

CASE DRAWINGS

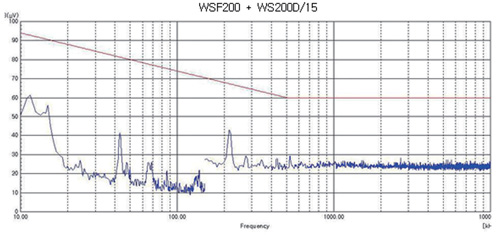

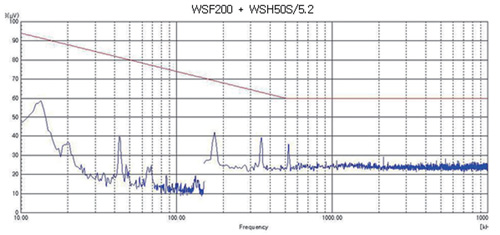

CHARACTERISTICS
CASE DRAWINGS
